Feature
Large Size Ultrasonic Cleaners available for Heavy Duty and Industrial Maintenance
- High-quality ultrasonic transducer which can be able to keep working the clock
- Top quality SUS 304 stainless steel made for inner tank and housing

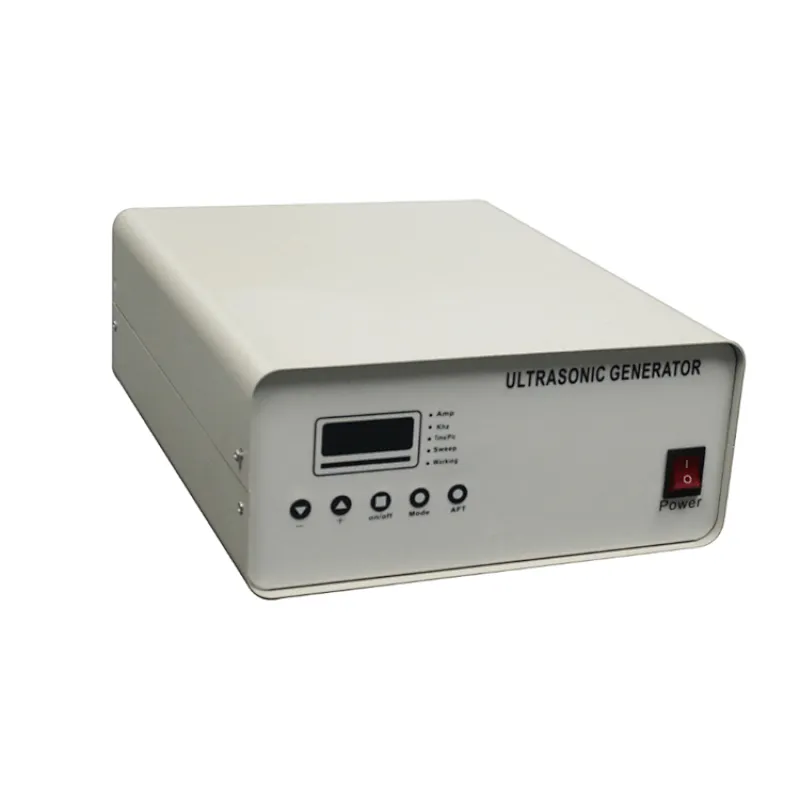

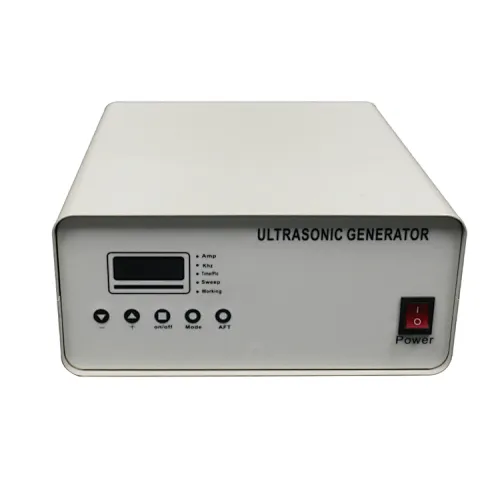

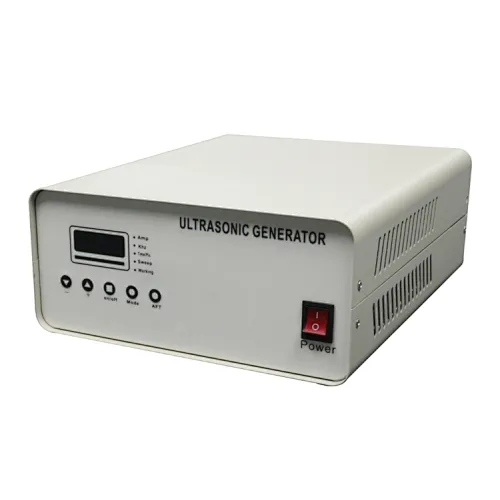

- Digital ultrasonic control system with adjustable ultrasonic power (Presence ultrasonic generator depends on model)
- Time setting with 1-60minutes or 1-30 minutes (depends on model)

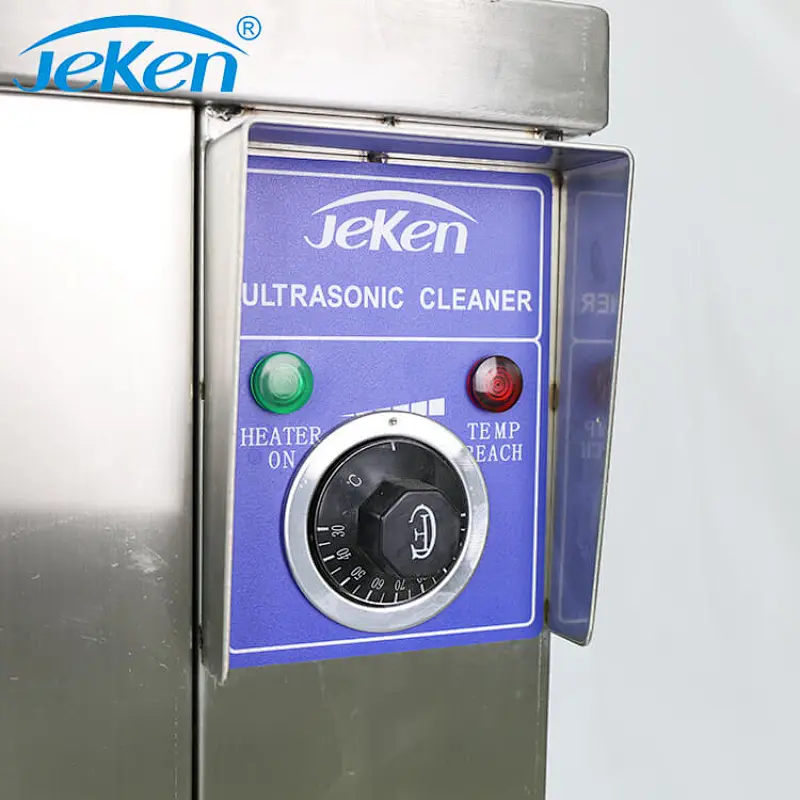

- Built-in heating system reach to max 110℃
- Customization (tank size, material or frequency)of this series is available
Specification
Model | KS-1024 |
Ultrasonic Frequency | 28KHz or 40KHz |
Tank Material | SUS304 |
Tank Capacity | 56L |
Power Supply | AC110~120V, 50 / 60Hz AC220~240V, 50 / 60Hz |
Ultrasonic Power | 1200W |
Heating Power | 3000W |
Timer Setting | 1-60mins |
Tank Size | 500*355*500mm |
Unit Size | 680*535*720mm |
Transducer Qty(PCS) | 24 |
Temperature setting(℃)-Max | 110℃ |
Heating system power supply | AC 220-240V, 1, 20AMP |
Model In This Series
Model | Tank Capacity | Tank Size | Unit Size | Ultrasonic Power (Max.) | Heating Power (Mx.) |
KS-1006 | 23L | 305*250*305MM | 485*430*705MM | 300W | 1500W |
KS-1012 | 38L | 355*305*355MM | 535*485*755MM | 600W | 1500W |
KS-1018 | 56L | 406*305*460MM | 586*485*680MM | 900W | 3000W |
KS-1024 | 88L | 500*355*500MM | 680*535*720MM | 1200W | 3000W |
KS-1030 | 101L | 500*406*500MM | 680*586*720MM | 1500W | 4500W |
KS-1036 | 126L | 500*460*550MM | 680*640*770MM | 1800W | 4500W |
KS-1042 | 150L | Custom-made | Custom-made | 2100W | 4500W |
KS-1048 | 170L | Custom-made | Custom-made | 2400W | 4500W |
KS-1054 | 190L | Custom-made | Custom-made | 2700W | 6000W |
KS-1060 | 210L | Custom-made | Custom-made | 3000W | 6000W |
KS-1066 | 230L | Custom-made | Custom-made | 3300W | 6000W |
KS-1072 | 250L | Custom-made | Custom-made | 3600W | 6000W |
We can custom-made any size of the ultrasonic cleaning system per your requirement.
Application Range
KS series is always used to clean big size items, heavy duty items or large batch of small items.
–>Used in shop/store, factory
Clean jewelry, glass, fruit and vegetables, PCB board, hardware, screw and nut, bullet shell …etc in large batch.
–>Used in electronic, auto parts applications
Clean PCB, electronic element, metal plate, components and parts, nut and screw...etc in large batch.
–>Used in industrial filed
Clean engine parts, injector, air cylinder, mould, blind window, sieve, filter elements anilox roller…etc.
